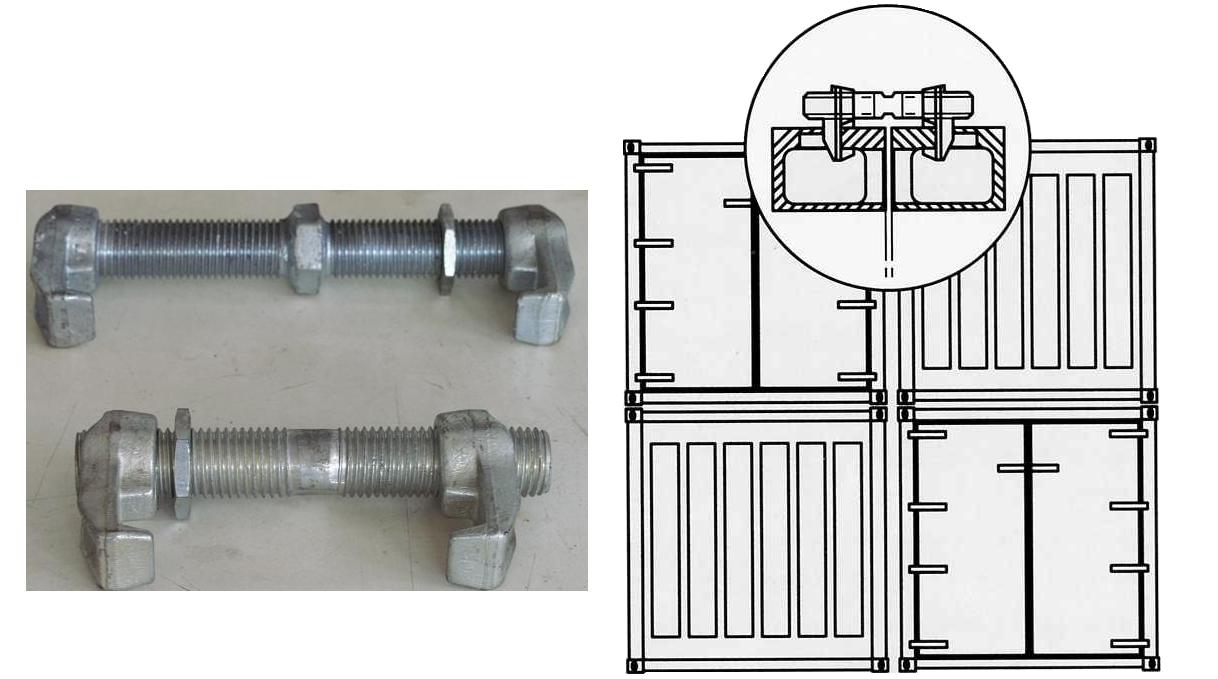

MODEL |
|
Bridge Fitting |
|
|
|
|
REFERENCE |
|
PC-1 |
|
|
|
|
WHEIGHT |
|
3,4 KG |
|
|
|
|
DIMENSION |
|
25/80 |
|
|
|
|
MATERIAL |
|
Forged Steel |
|
|
|
|
B.L. |
|
8 T. |
|
|
|
|
|
S.W.L. |
|
4 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
Top of containers |
|
 |
|

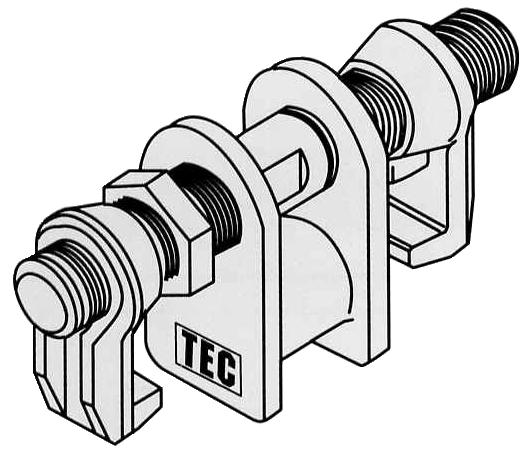

MODEL |
|
Bridge fitting |
|
|
|
|
REFERENCE |
|
PC-20 |
|
|
|
|
WHEIGHT |
|
5 KG |
|
|
|
|
DIMENSION |
|
80 mm |
|
|
|
|
MATERIAL |
|
Forged steel |
|
|
|
|
B.L. |
|
8 T. |
|
|
|
|
|
S.W.L. |
|
4 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
Top of containers |
|
 |
|

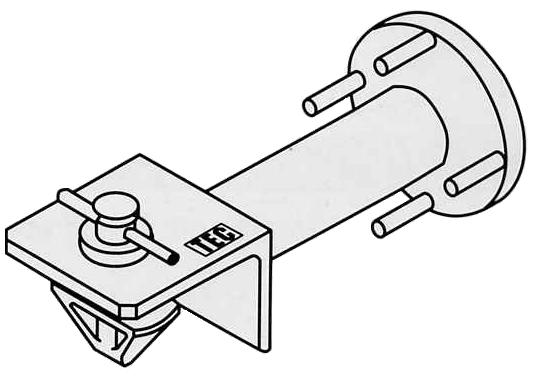

MODEL |
|
Bridge fitting |
|
|
|
|
REFERENCE |
|
PC-35A |
|
|
|
|
WHEIGHT |
|
As required |
|
|
|
|
DIMENSION |
|
As required |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
As required |
|
|
|
|
|
S.W.L. |
|
As required |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
Between containers and hatch coaming |
|
 |
|

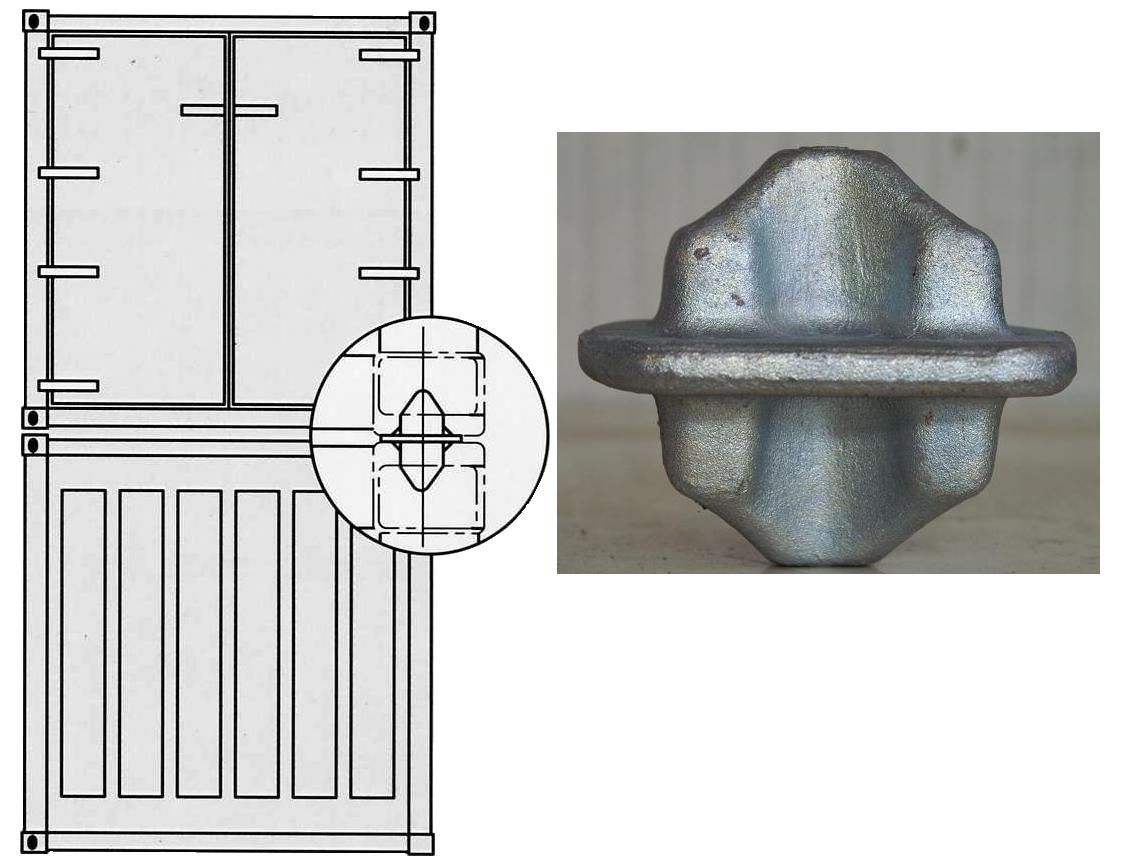

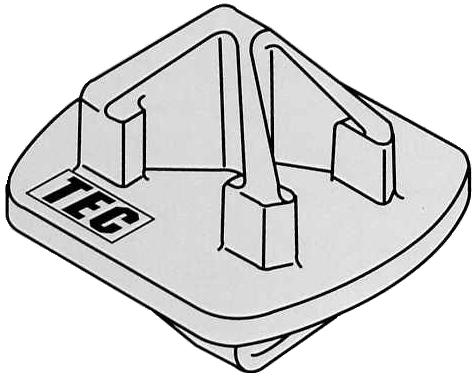

MODEL |
|
Single intermediate
stacking cone |
|
|
|
|
REFERENCE |
|
CI-1-1F |
|
|
|
|
WHEIGHT |
|
2,5 KG |
|
|
|
|
DIMENSION |
|
120×130×10
(13) |
|
|
|
|
MATERIAL |
|
Ductile iron/forged |
|
|
|
|
B.L. |
|
30 T. (share) |
|
|
|
|
|
S.W.L. |
|
15 T. (share) |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
Between containers |
|
 |
|

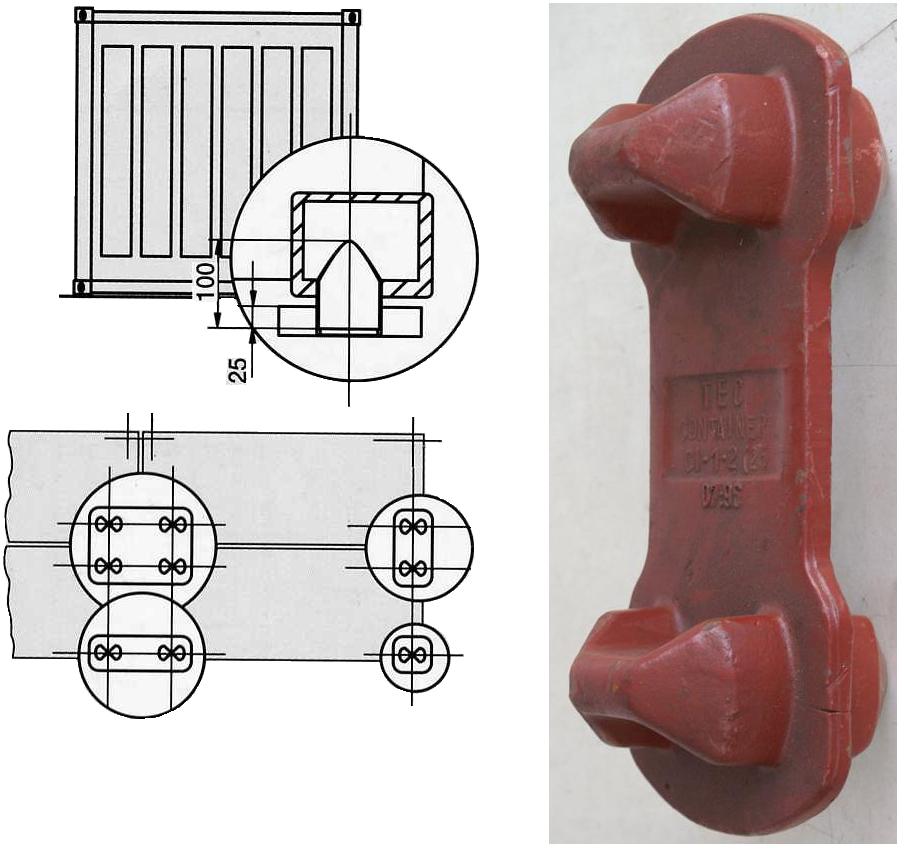

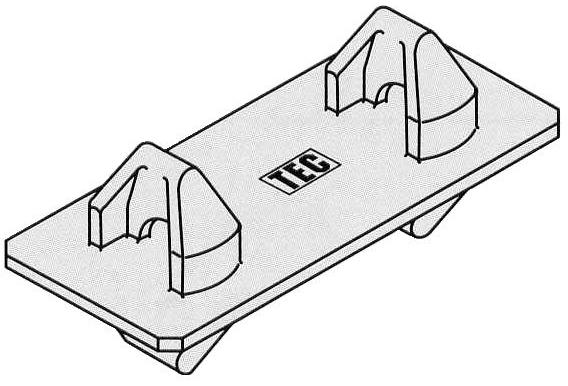

MODEL |
|
Double intermediate
stacking cone |
|
|
|
|
REFERENCE |
|
CI-1-2 |
|
|
|
|
WHEIGHT |
|
12 KG |
|
|
|
|
DIMENSION |
|
150×345×10
(13) |
|
|
|
|
MATERIAL |
|
Forged steel-
Steel plate |
|
|
|
|
B.L. |
|
64 T. (share) |
|
|
|
|
|
S.W.L. |
|
32 T. (share) |
|
DRAWING |
|
|
|
FINISHED |
|
Painted |
|
|
|
|
COUNTER PARTS
|
|
Between containers |
|
 |
|

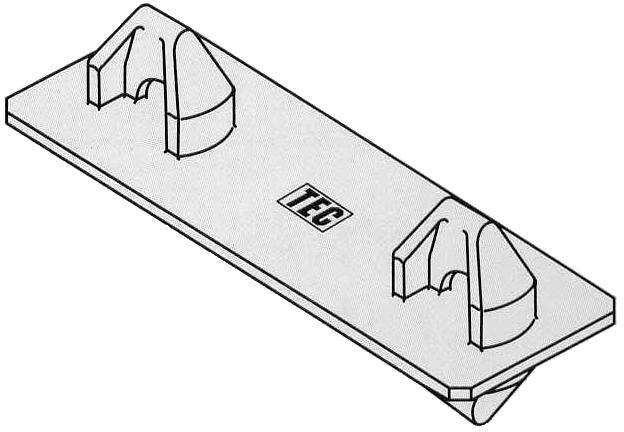

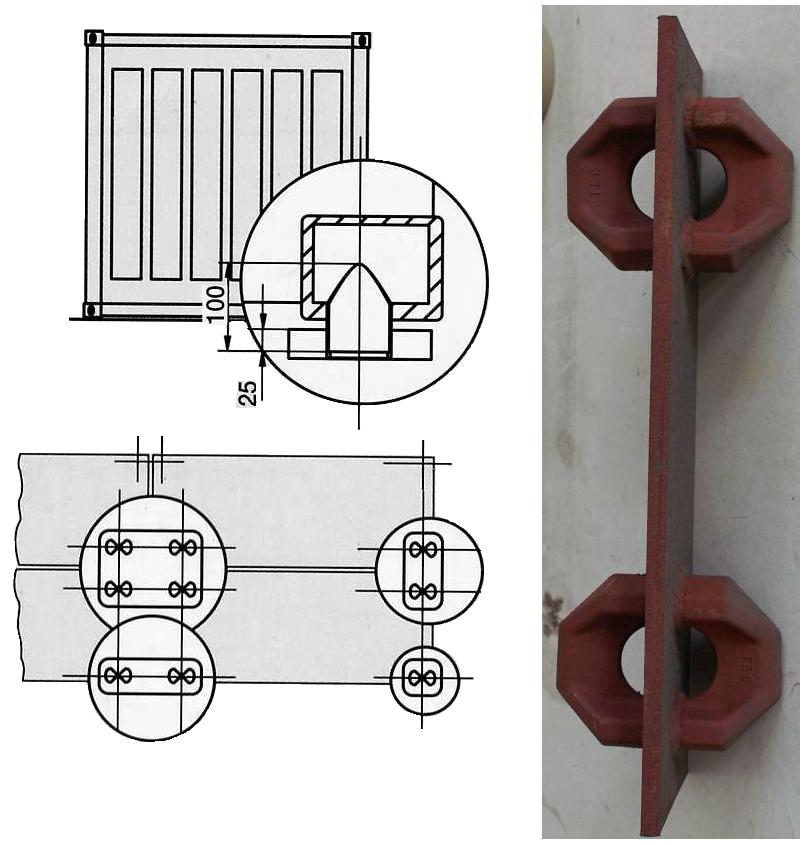

MODEL |
|
Double longitudinal stacking cone |
|
|
|
|
REFERENCE |
|
CI-1-3 |
|
|
|
|
WHEIGHT |
|
12 KG |
|
|
|
|
DIMENSION |
|
150×440×10
(13) |
|
|
|
|
MATERIAL |
|
Forged steel-
Steel plate |
|
|
|
|
B.L. |
|
64 T. |
|
|
|
|
|
S.W.L. |
|
32 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Painted |
|
|
|
|
COUNTER PARTS
|
|
Between containers |
|
 |
|

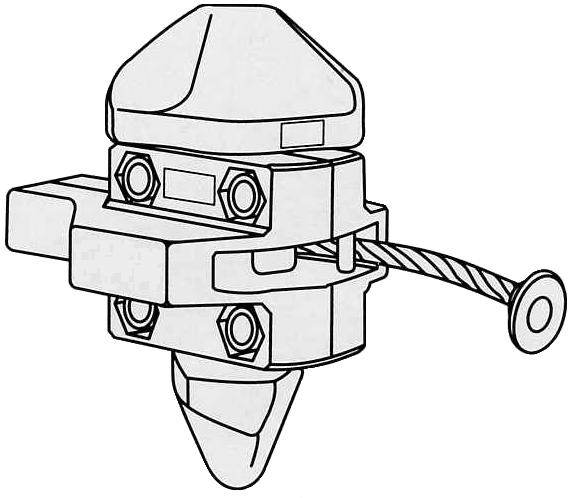

MODEL |
|
Semi-automatic twist |
|
|
|
|
REFERENCE |
|
CI-45-1 |
|
|
|
|
WHEIGHT |
|
6,5 KG |
|
|
|
|
DIMENSION |
|
120×163×30 |
|
|
|
|
MATERIAL |
|
Forged steel -
Ductile iron |
|
|
|
|
B.L. |
|
50 T. |
|
|
|
|
|
S.W.L. |
|
25 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
Between containers |
|
 |
|

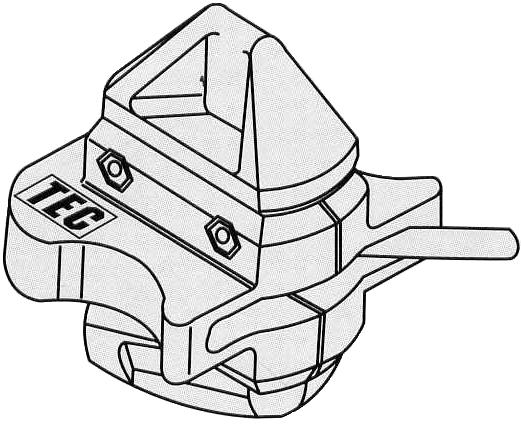

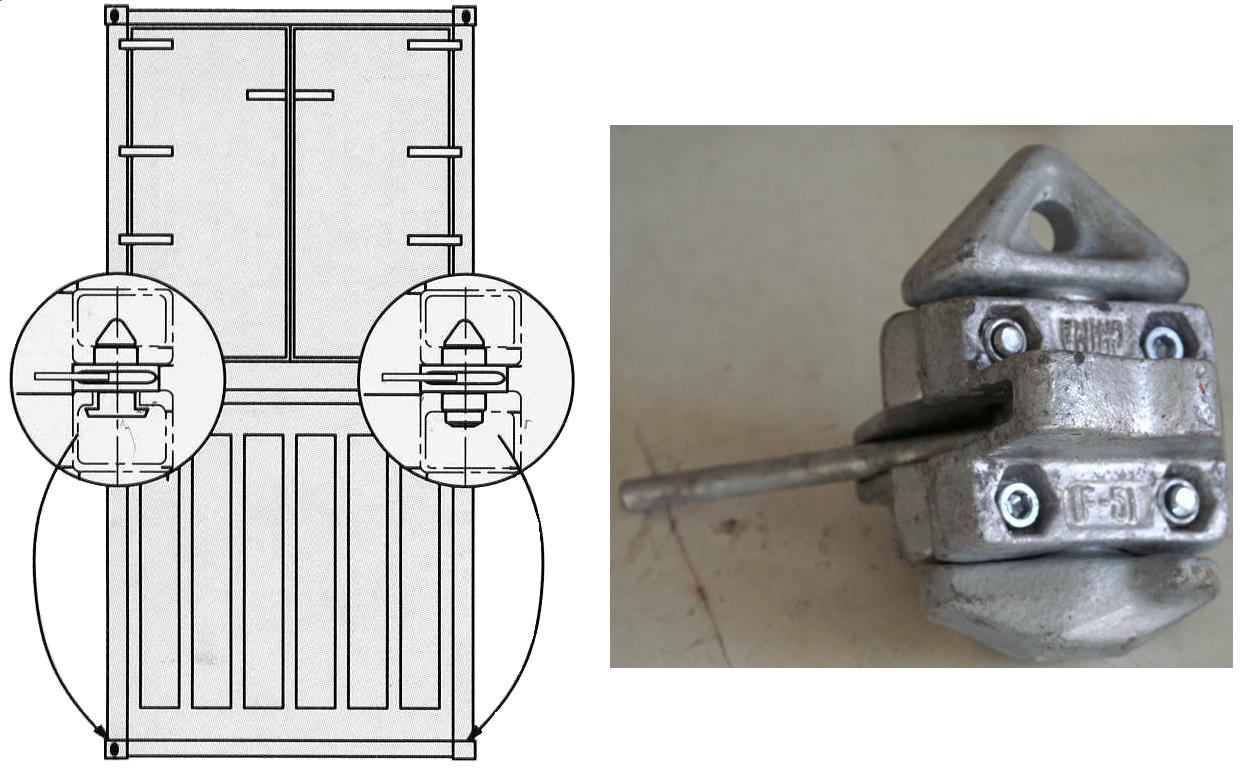

MODEL |
|
Intermediate
twistlock |
|
|
|
|
REFERENCE |
|
CI-5-1 |
|
|
|
|
WHEIGHT |
|
6 KG |
|
|
|
|
DIMENSION |
|
115×145×28 |
|
|
|
|
MATERIAL |
|
Forged steel -
Ductile iron |
|
|
|
|
B.L. |
|
50 T. |
|
|
|
|
|
S.W.L. |
|
25 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
Between containers |
|
 |
|
MODEL |
|
Intermediate
twistlock |
|
|
|
|
REFERENCE |
|
CI-10 |
|
|
|
|
WHEIGHT |
|
6,5 KG |
|
|
|
|
DIMENSION |
|
112×140×26 |
|
|
|
|
MATERIAL |
|
Forged steel-
Ductile iron |
|
|
|
|
B.L. |
|
50 T. |
|
|
|
|
|
S.W.L. |
|
25 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
Between containers |
|
 |
|

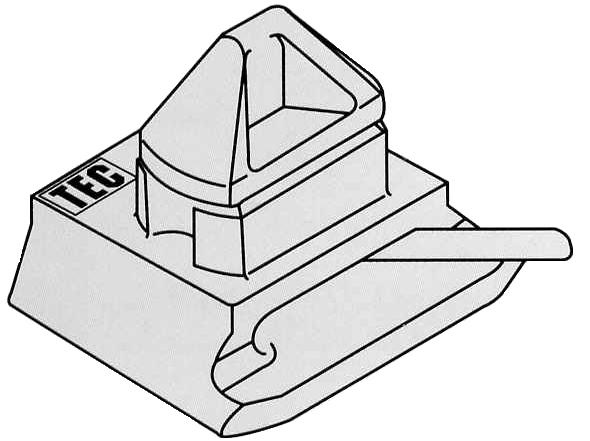

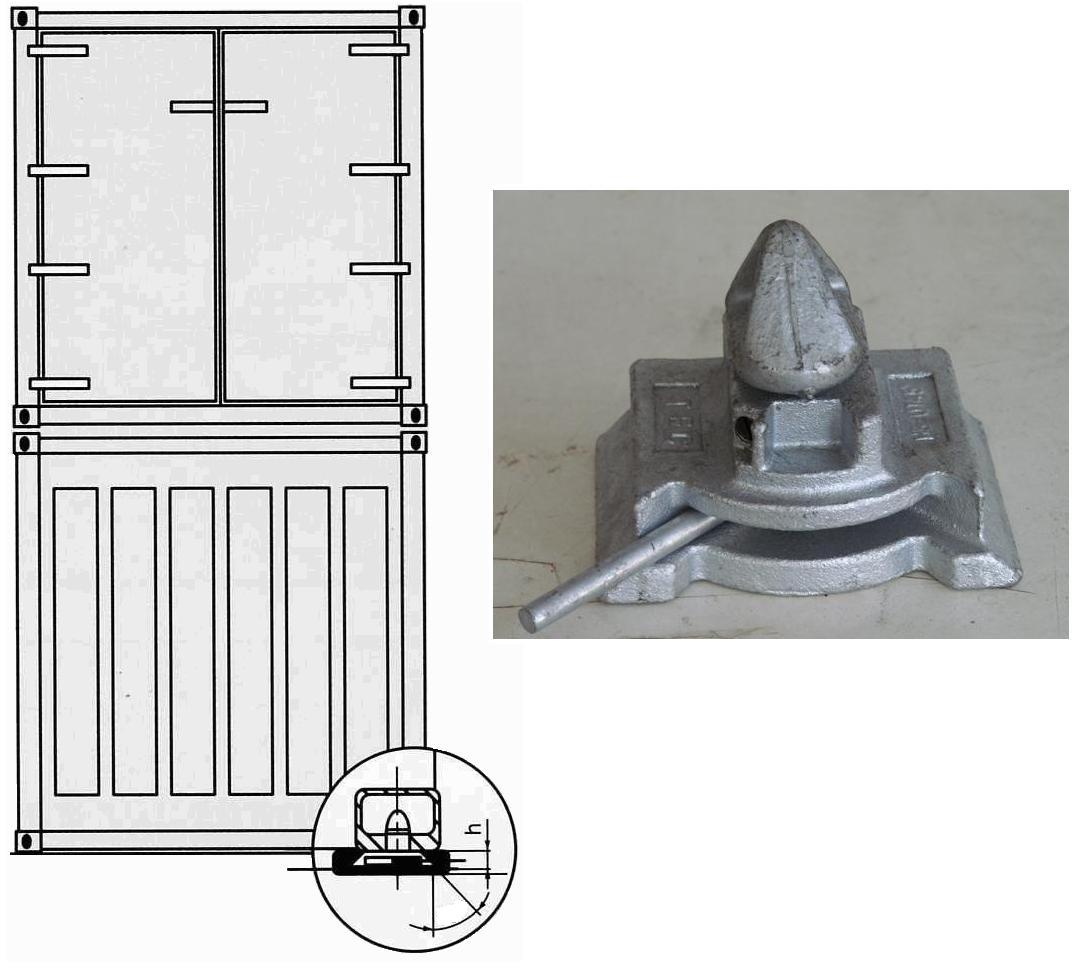

MODEL |
|
Base twistlock |
|
|
|
|
REFERENCE |
|
CB-25-1G |
|
|
|
|
WHEIGHT |
|
6 KG |
|
|
|
|
DIMENSION |
|
176×140×42 |
|
|
|
|
MATERIAL |
|
Forged steel -
Ductile iron |
|
|
|
|
B.L. |
|
36 T. |
|
|
|
|
|
S.W.L. |
|
18
T. |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
FE-03-1 |
|
 |
|

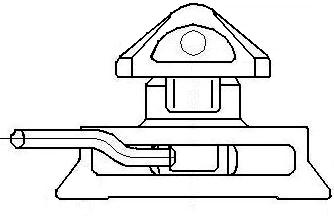

MODEL |
|
Base twistlock |
|
|
|
|
REFERENCE |
|
CB-34-1 |
|
|
|
|
WHEIGHT |
|
6,5 KG |
|
|
|
|
DIMENSION |
|
175×160×45 |
|
|
|
|
MATERIAL |
|
Forged steel -
Ductile iron |
|
|
|
|
B.L. |
|
36 T. |
|
|
|
|
|
S.W.L. |
|
18 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
FE-28-1 |
|
 |
|

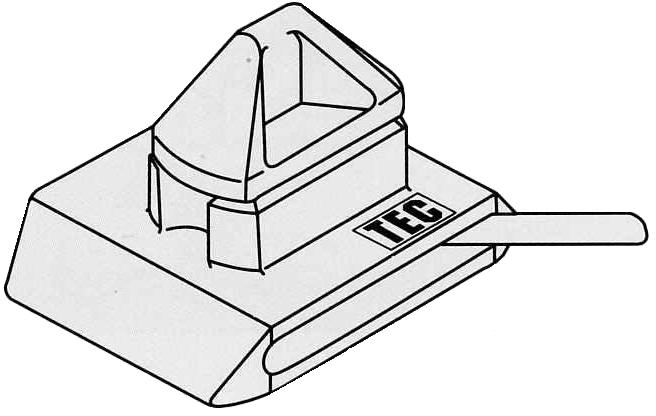

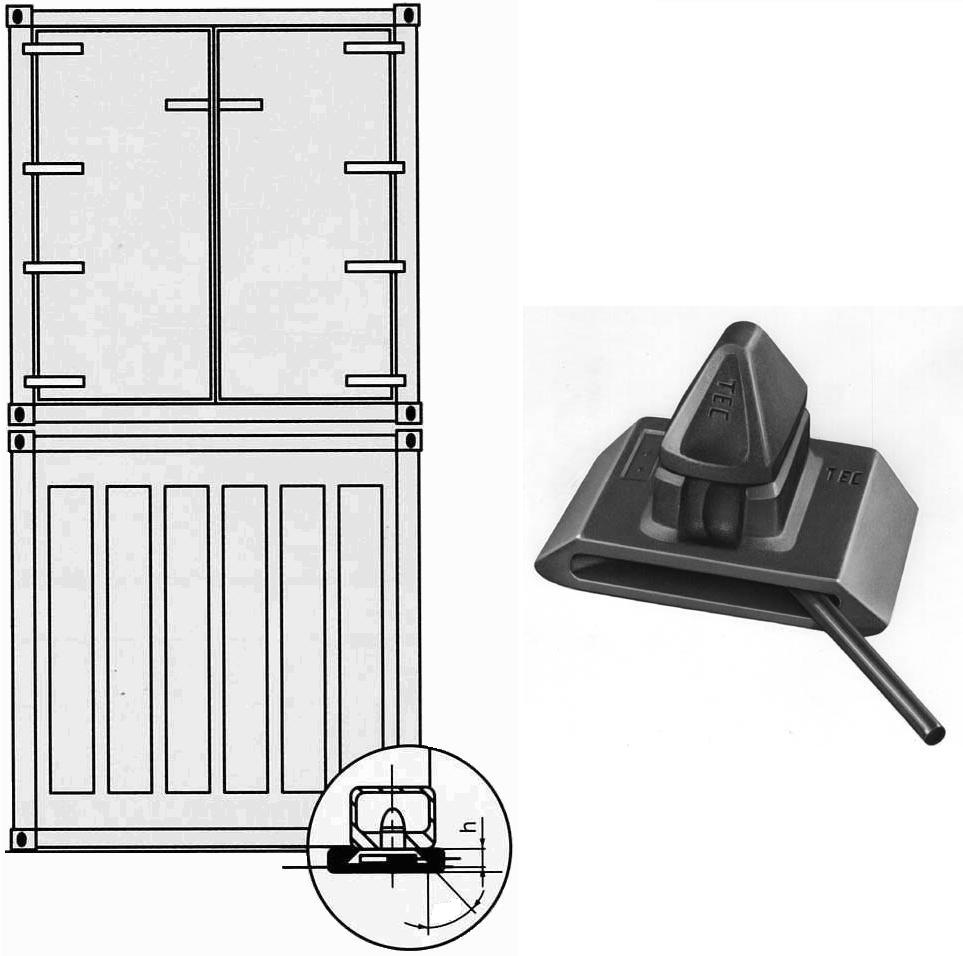

MODEL |
|
Base twistlock |
|
|
|
|
REFERENCE |
|
CB-21-1G |
|
|
|
|
WHEIGHT |
|
5 KG |
|
|
|
|
DIMENSION |
|
176×130×32 |
|
|
|
|
MATERIAL |
|
Forged steel -
Ductile iron |
|
|
|
|
B.L. |
|
36 T. |
|
|
|
|
|
S.W.L. |
|
18 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
FE-40-1 |
|
