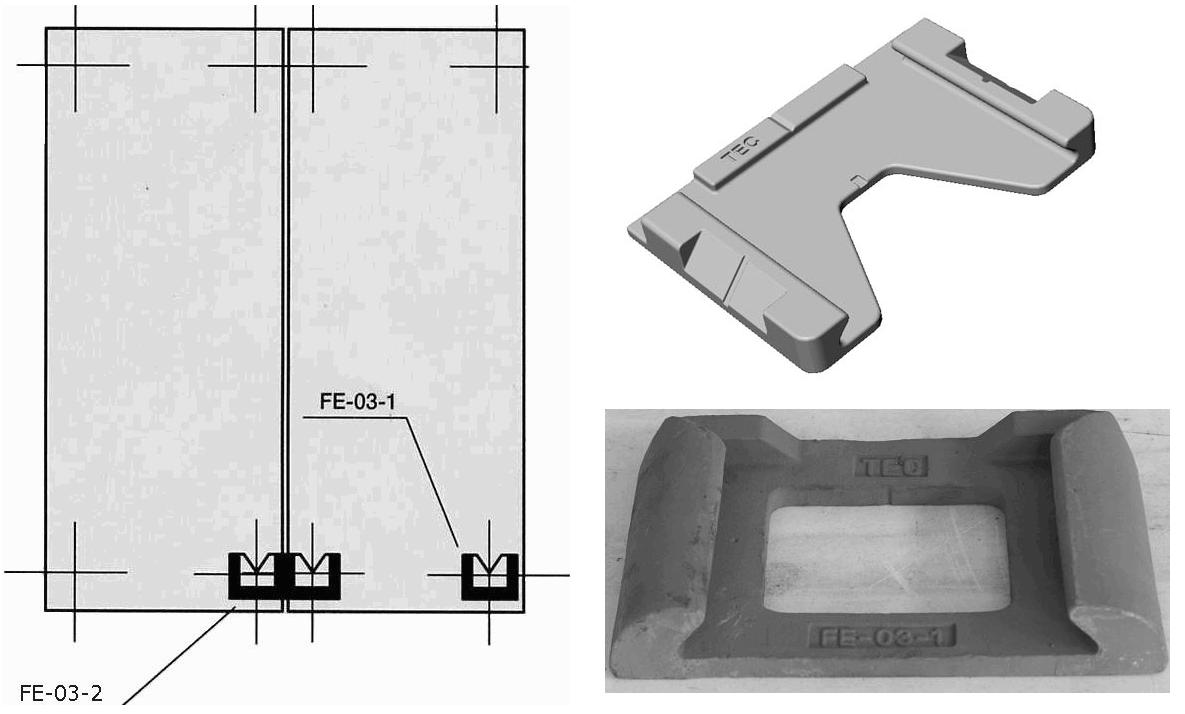

Posizionamento corretto per le piastre
|
 |
|
MODEL |
|

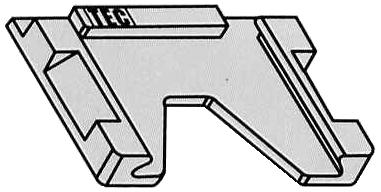

Dovetail foundation |
|
|
|
|
REFERENCE |
|
FE-03-1 |
|
|
|
|
WHEIGHT |
|
2,5 KG |
|
|
|
|
DIMENSION |
|
220×160×30 |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
36 T. |
|
|
|
|
|
S.W.L. |
|
18 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Self colour |
|
|
|
|
COUNTER PARTS
|
|
CB-25-1 and CB-21-1 |
|
|
|

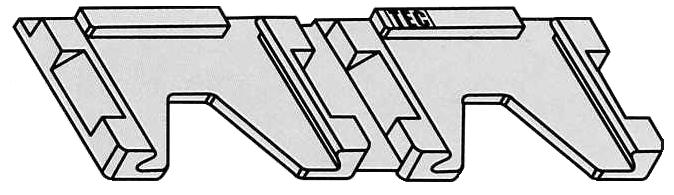

MODEL |
|

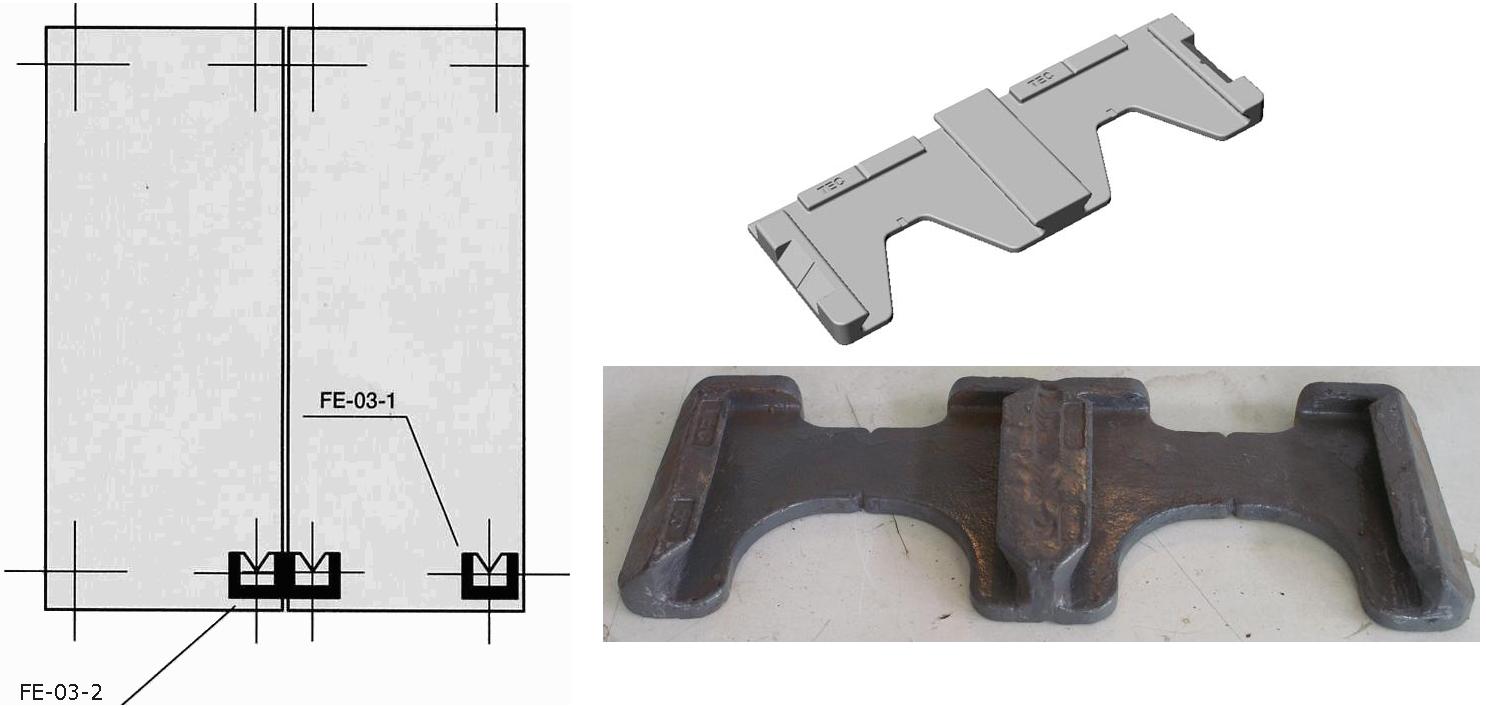

Dovetail foundation |
|
|
|
|
REFERENCE |
|
FE-03-2(25/80) |
|
|
|
|
WHEIGHT |
|
5,5 KG |
|
|
|
|
DIMENSION |
|
423×160×30 |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
36 T. |
|
|
|
|
|
S.W.L. |
|
18 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Self colour |
|
|
|
|
COUNTER PARTS
|
|
CB-25-1 and CB-21-1 |
|
 |
|

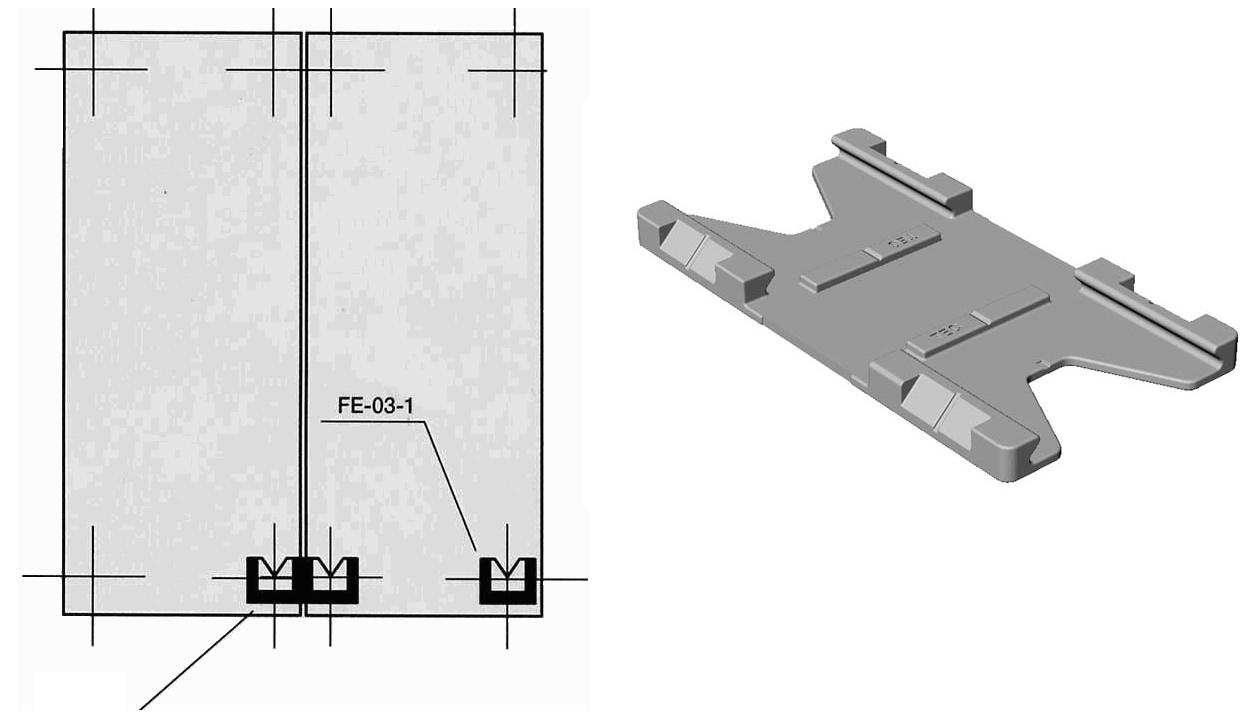

MODEL |
|
Dovetail foundation |
|
|
|
|
REFERENCE |
|

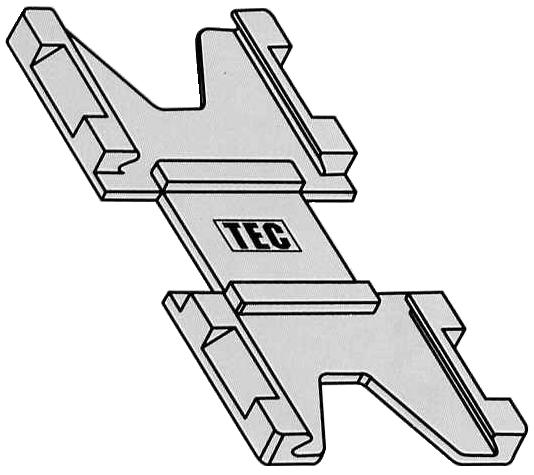

FE-03-3(76) |
|
|
|
|
WHEIGHT |
|
7,3 KG |
|
|
|
|
DIMENSION |
|
420×220×30 |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
36 T. |
|
|
|
|
|
S.W.L. |
|
18 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Self colour |
|
|
|
|
COUNTER PARTS
|
|
CB-25-1 and CB-21-1 |
|
 |
|

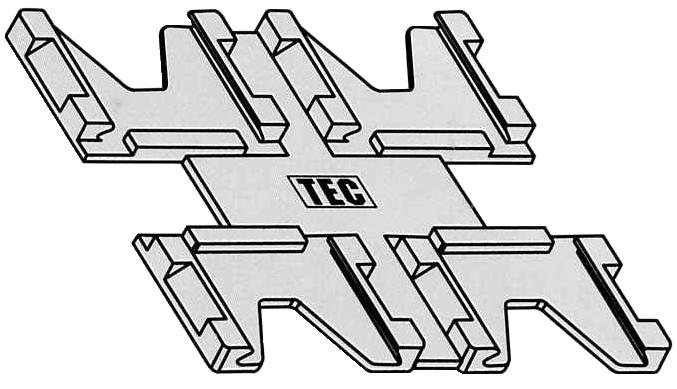

MODEL |
|
Dovetail foundation |
|
|
|
|
REFERENCE |
|
FE-03-4(25/80) |
|
|
|
|
WHEIGHT |
|
14,2 KG |
|
|
|
|
DIMENSION |
|
420×423×30 |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
36 T. |
|
|
|
|
|
S.W.L. |
|
18 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Self colour |
|
|
|
|
COUNTER PARTS
|
|
CB-25-1 and CB-21-1 |
|
 |
|
MODEL |
|

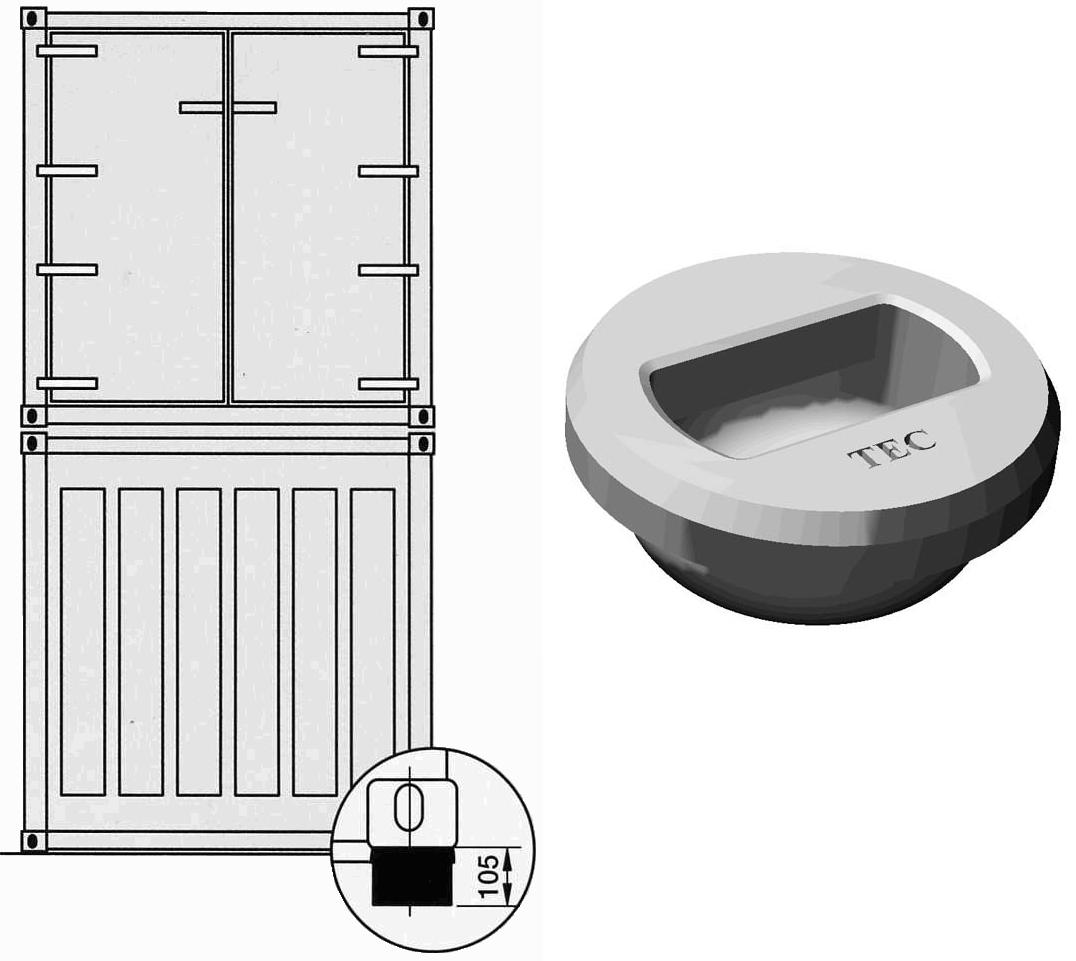

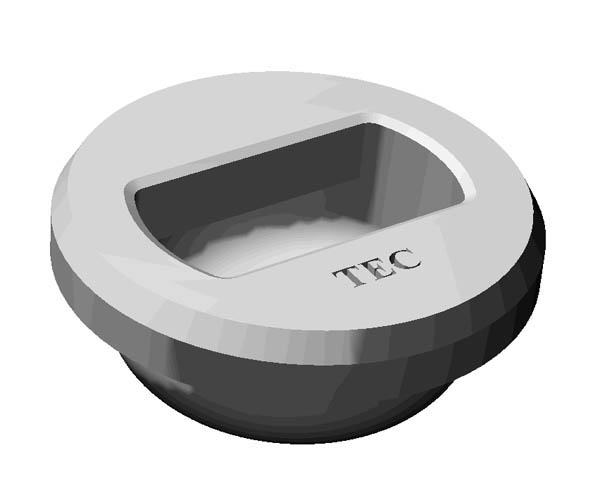

Iso pocket |
|
|
|
|
REFERENCE |
|
FE-07A-1 |
|
|
|
|
WHEIGHT |
|
7 KG |
|
|
|
|
DIMENSION |
|
Ų185×78 |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
40 T. |
|
|
|
|
|
S.W.L. |
|
20 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Self colour |
|
|
|
|
COUNTER PARTS
|
|
CI-1-1F - CB-05-1F CI-10-1 - CI-5-1
- CI-21-1 |
|
 |
|

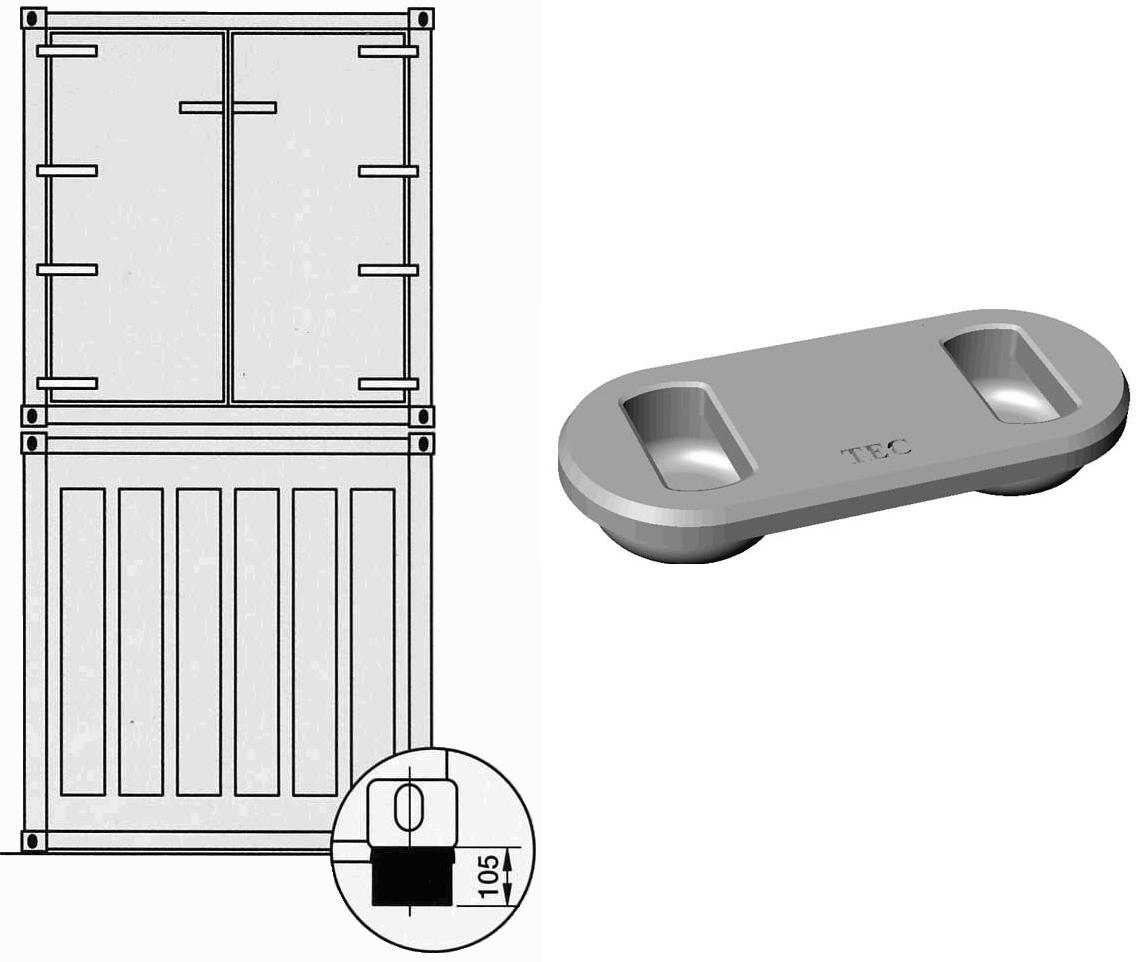

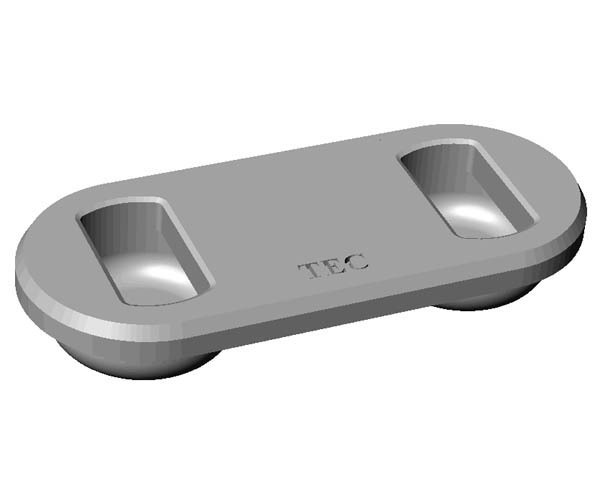

MODEL |
|
Iso pocket double |
|
|
|
|
REFERENCE |
|
FE-07A-2(25/80) |
|
|
|
|
WHEIGHT |
|
16 KG |
|
|
|
|
DIMENSION |
|
388×185×78 |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
40 T. |
|
|
|
|
|
S.W.L. |
|
20 T. |
|
DRAWING
DRAWING |
|
|
|
FINISHED |
|
Self colour |
|
|
|
|
COUNTER PARTS
|
|
CI-1-1F - CB-05-1F CI-10-1 - CI-5-1
- CI-21-1 |
|
|
|

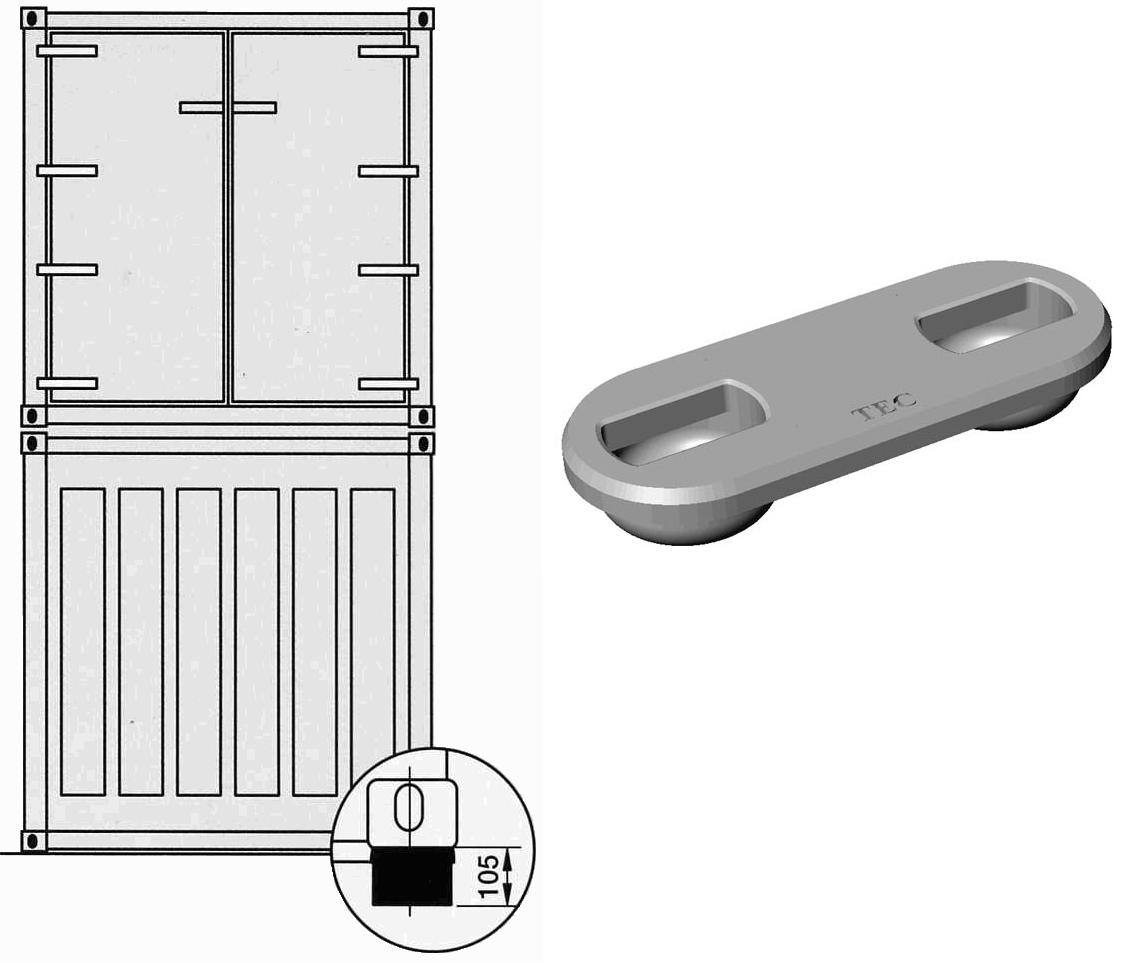

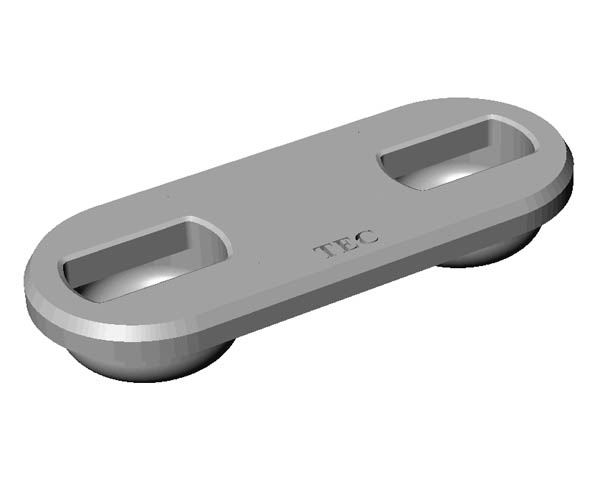

MODEL |
|
Iso pocket double |
|
|
|
|
REFERENCE |
|
FE-07A-3(76) |
|
|
|
|
WHEIGHT |
|
19,5 KG |
|
|
|
|
DIMENSION |
|
388×185×78 |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
40 T. |
|
|
|
|
|
S.W.L. |
|
20 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Self colour |
|
|
|
|
COUNTER PARTS
|
|
CI-1-1F - CB-05-1F CI-10-1 - CI-5-1
- CI-21-1 |
|
 |
|

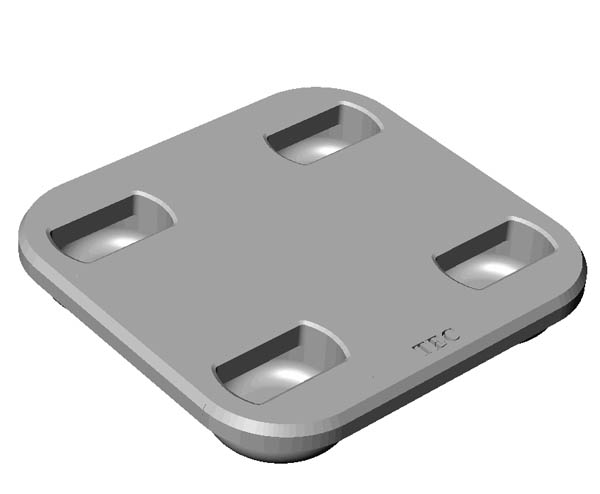

MODEL |
|

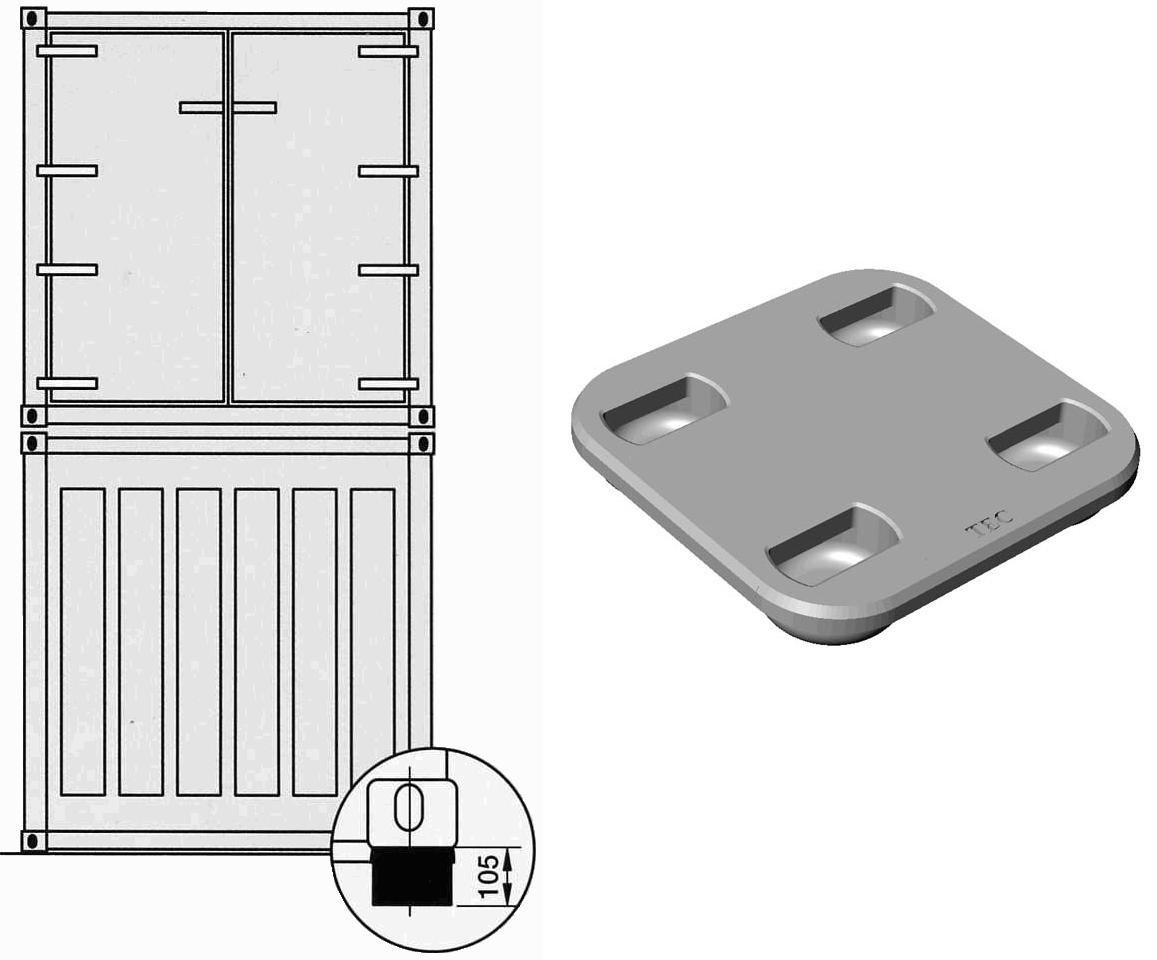

Iso pocket quadruple |
|
|
|
|
REFERENCE |
|
FE-07A-4(25/80) |
|
|
|
|
WHEIGHT |
|
36 KG |
|
|
|
|
DIMENSION |
|
465×443×78 |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
40 T. |
|
|
|
|
|
S.W.L. |
|
20 T. |
|
DRAWING
DRAWING |
|
|
|
FINISHED |
|
Self colour |
|
|
|
|
COUNTER PARTS
|
|
CI-1-1F - CB-05-1F CI-10-1 - CI-5-1
- CI-21-1 |
|
 |
|

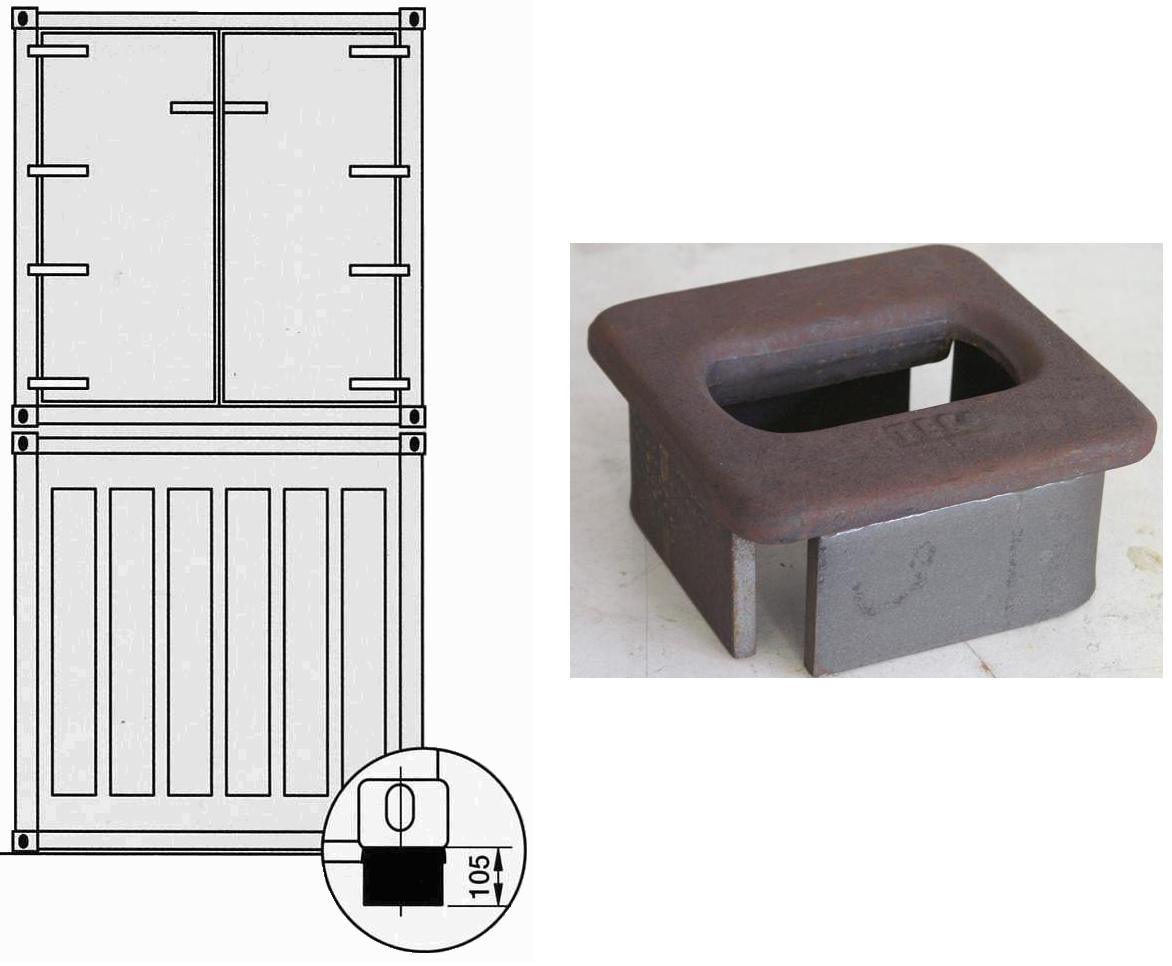

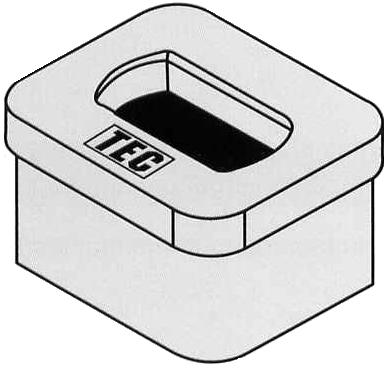

MODEL |
|
Raised deck socket |
|
|
|
|
REFERENCE |
|
FE-72-1 |
|
|
|
|
WHEIGHT |
|
9 KG |
|
|
|
|
DIMENSION |
|
178×178×H |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
40 T. |
|
|
|
|
|
S.W.L. |
|
20 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Self colour |
|
|
|
|
COUNTER PARTS
|
|
CI-10-1 - CI-5-1
CI-45-1 - CI-21-1 |
|
 |
|

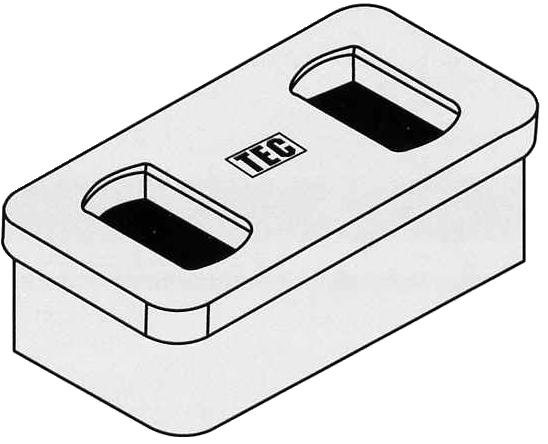

MODEL |
|

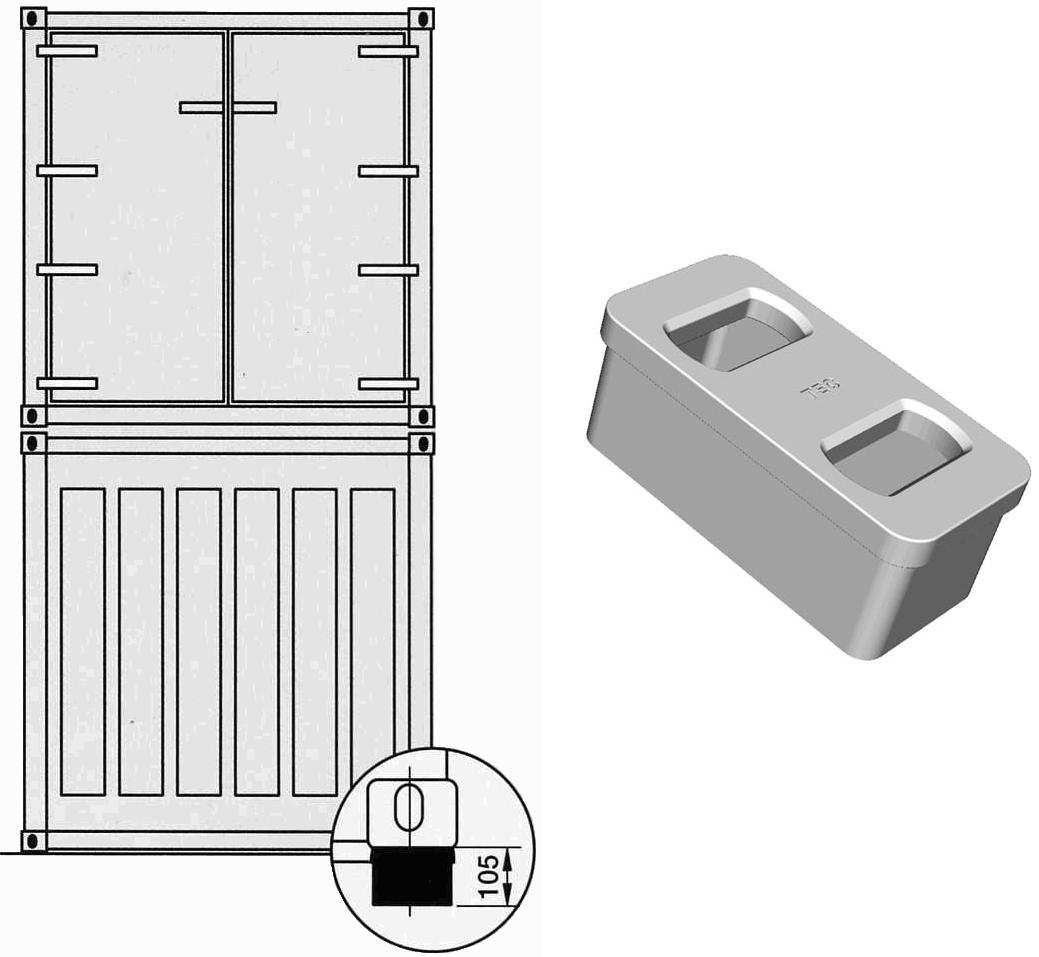

Double raised deck
socket |
|
|
|
|
REFERENCE |
|
FE-72-2(25/80) |
|
|
|
|
WHEIGHT |
|
17 KG |
|
|
|
|
DIMENSION |
|
381×178×H |
|
|
|
|
MATERIAL |
|
Steel plate |
|
|
|
|
B.L. |
|
40 T. |
|
|
|
|
|
S.W.L. |
|
20
T. |
|
DRAWING
DRAWING |
|
|
|
FINISHED |
|
Self colour |
|
|
|
|
COUNTER PARTS
|
|
CI-10-1 - CI-5-1
CI-45-1 - CI-21-1 |
|
 |
|
MODEL |
|

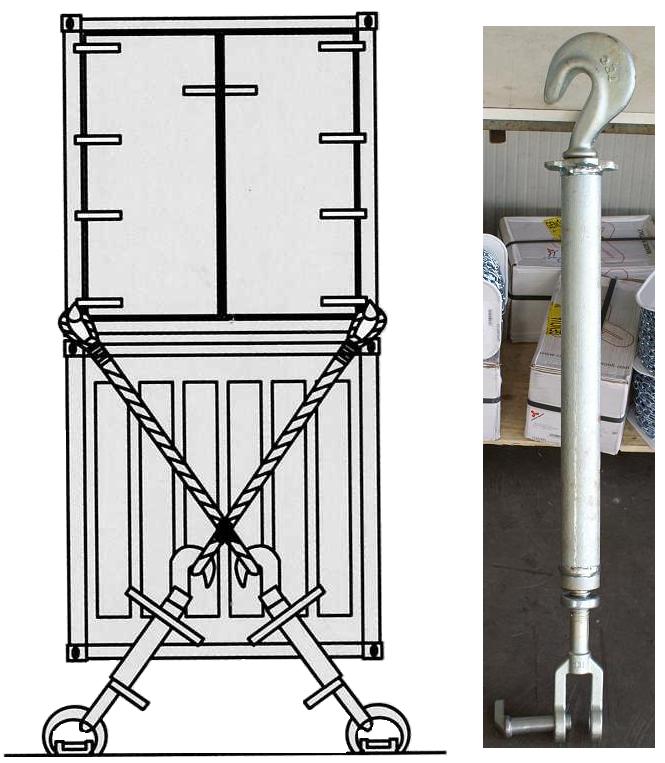

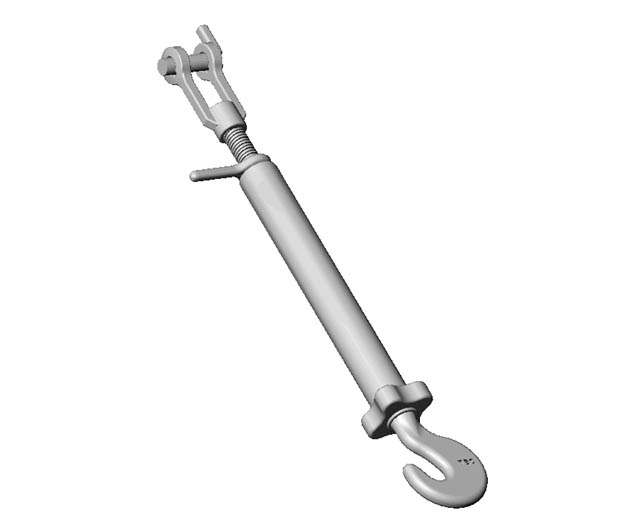

Turnbuckle |
|
|
|
|
REFERENCE |
|
TE-1-36.2 |
|
|
|
|
WHEIGHT |
|
18 KG |
|
|
|
|
DIMENSION |
|
1.350×950 |
|
|
|
|
MATERIAL |
|
Forged steel |
|
|
|
|
B.L. |
|
36 T. |
|
|
|
|
|
S.W.L. |
|
18 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
Lashing bars w/eye |
|
 |
|

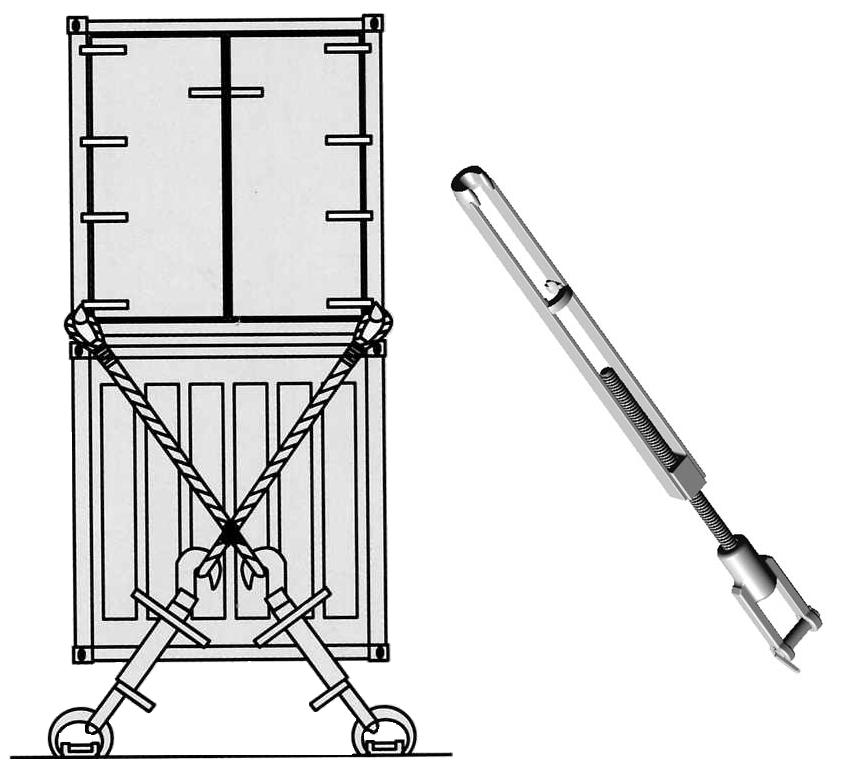

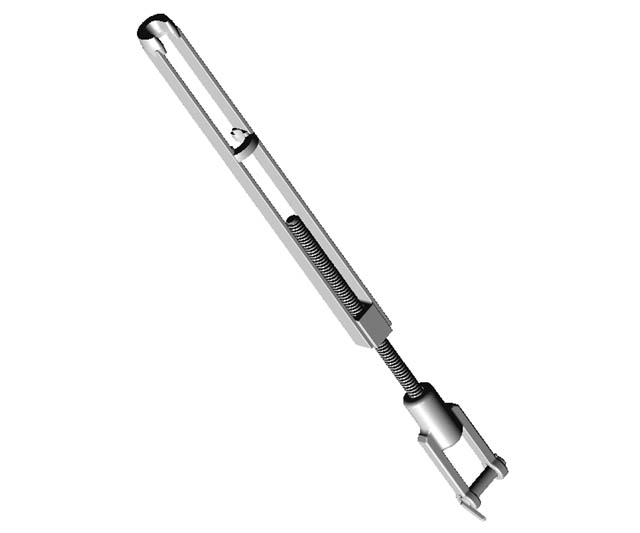

MODEL |
|
Turnbuckle |
|
|
|
|
REFERENCE |
|
TE-31-50.2 |
|
|
|
|
WHEIGHT |
|
13 KG |
|
|
|
|
DIMENSION |
|
1.175×975 |
|
|
|
|
MATERIAL |
|
Forged steel/Steel
plate |
|
|
|
|
B.L. |
|
50 T. |
|
|
|
|
|
S.W.L. |
|
25 T. |
|
DRAWING |
|
|
|
FINISHED |
|
Galvanized |
|
|
|
|
COUNTER PARTS
|
|
Lashing bars w/multistep |
|
